Files include - Rhino folder, Materials & Grasshopper file - https://www.dropbox.com/s/fj63t9skjlt2y41/Project%203%20Files.rar
- Digital Poster - https://www.dropbox.com/s/iim7sbz34wi0yzn/For%20Daily%20Nomads%20-%20Dara%20Ten.pdf
Sunday, 22 June 2014
Thursday, 5 June 2014
Project 3 - Interim 2 - For Daily Nomads
https://www.dropbox.com/s/iim7sbz34wi0yzn/For%20Daily%20Nomads%20-%20Dara%20Ten.pdf
Friday, 2 May 2014
Team 1 - Photo sharing & Week 9
https://www.dropbox.com/s/ob3naek5urh8k4h/Photos.rar
Arch1201 – lecture week 9
Design – transparency
-
Open space, hub area with different amenities eg
toilet, ticket booth/information, food & drink.
-
Allocation of space eg – loading & unloading
travellers, bus stop interchange, memorial park garden, shops.
-
Combination of artificial and natural
lighting
-
Have structural integrity with canopy/ have a
purpose other than a feature
Week 9 Studio
Multi-access Interchanges / Local interchange
Services
-
Passenger access to the public transport network
-
Access point or gateway to town centre &
community
-
Sheltered public waiting area
-
Passenger information to assist in
decision-making
-
Focus for activity for increased development in
the area
Principle of design
-
Development to be safe, comfortable &
efficient multi-purpose interchanges facilities
-
Separation between different travel modes &
vehicle types to improve safety and efficiency
-
Designated entrances and exits to the
interchange and the road network for buses.
-
Segregate pedestrian and vehicle movements with
marked crossing points
-
Separate flow of travellers from arriving and
departing
-
|
1.
Identify the
necessary amenities and facilities
|
-
Quality environment with comfortable waiting
areas
-
Clear & logical access to and from transport
services eg bridge across light rail, stairs/ramps to platform catering to
physically disabled travellers.
-
Adequate & accurate travel information eg
ticket vendor for both light rail and buses
-
Protection from bus and other vehicles eg
barriers, fences, signs.
-
Adequate seating, seats should discourage
sleeping?
-
Toilet facilities to be accessible for disabled
and staff members
-
Continuous weather protection for waiting areas
for all transport modes & facilities.
-
Wind barriers to be required – Barriers should
not impede pedestrian flows or compromise line of sight
Amenities & facilities
that are not a necessity
-
Shops selling food and drinks.
-
Sunday, 27 April 2014
Project 2 Submission
- Sketchup Script
- Rhino Model
-Interactive Poster
Animation
Sketchup Script
Animation
Sketchup Script
Rhino Model
Interactive PDF
(Included in link)
Thursday, 10 April 2014
Project 2 Interim Presentation
https://www.dropbox.com/s/oww1eeec629nvev/arch1201-2014-Dara-Ten-project2.pdf
Thursday, 3 April 2014
Week 4 Studio - Matrix Story Board
|
|
Toggle
Switch
|
Incremental
Slider
|
Infinitesimal
Slider
|
|
Sun
|
Shutter
option. Additionally will provide privacy when closed.
|
Eaves
extruding from windows providing shading depending on the time of the day.
|
Window
tint depending on time of day. (Sun rise, Sun Set)
|
|
Wind
|
Pull
down canvas from an awning
|
Canvas
attached to column that can retract to a smaller size
|
Wall
with long vertical panels that will close depending how strong the wind is.
|
|
Rain
|
Columns
that can pull out a canvas.
|
Transforming roof to change to different
roof types eg shed, hip valley, flat,
butterfly
|
Elevated
Canvas that will retract depending on which side is heavier.
|
Sunday, 23 March 2014
Project 1 - Displaced Dwellers Final Submission
Drop Box Link
Feedback & Changes
Receiving feedback from Fridays interim presentation i experimented on what the design would be like if i had used 2 containers. The design was very similar but i had to accommodate for 4 people instead of 2. Main changes to the design is moving the living and dining room to a difference space from the bedroom. The Kitchen was also moved to a separate location away from any walkways and entrances. Privacy is still kept by using the high elevated windows.
Overall i think that this design showcases my concept of home more prominently and still keeping my principle of design - Simple & Intuitive Use
Thursday, 20 March 2014
Interim Presentation
Interim Presentation
Client: Tsunami affected victims.
Location: Japan.
Design Approach: Designing a temporary home for Japanese (2) people.
- Cost Efficient.
- Accessibility (Transportation & Preparation).
-Able to be stacked.
- Maximum of 1 container.
Disaster Relief Home

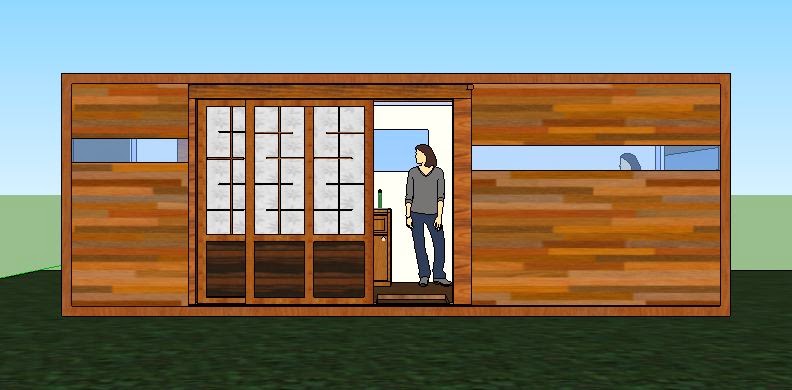

Front View
Rear View
Top View
Side View 1
Side View 2
Top View Internal
Section
Interim Presentation Poster
Thursday, 13 March 2014
Research - Clients
Geographic location Japan, Tohoku
Who was affected - Everyone was affected from urban and rural areas of Tohoku due to the strength of the tsunami traveling almost 10km inland. They have been affected by the total evacuation of their home to get to higher ground leaving most possessions behind. They require medical assistance to those who are injured and military aid to find and save people who are lost or require assistance.
Are they urban or rural location - Both rural and urban areas were affected in Tohoku.
What housing existed before the natural disaster?- Single/multi level buildings, Boating houses, apartments.
What are the climatic conditions? -Harsh climate conditions rising to average warm temperatures and reducing to hard cold temperatures.
Do those displaced dwellers have cultural or religious traditions which influence their apparel day to day activities or social interaction?
Who was affected - Everyone was affected from urban and rural areas of Tohoku due to the strength of the tsunami traveling almost 10km inland. They have been affected by the total evacuation of their home to get to higher ground leaving most possessions behind. They require medical assistance to those who are injured and military aid to find and save people who are lost or require assistance.
Are they urban or rural location - Both rural and urban areas were affected in Tohoku.
What housing existed before the natural disaster?- Single/multi level buildings, Boating houses, apartments.
What are the climatic conditions? -Harsh climate conditions rising to average warm temperatures and reducing to hard cold temperatures.
Do those displaced dwellers have cultural or religious traditions which influence their apparel day to day activities or social interaction?
Studio Week 2 - Concept of Home Refined
Understanding of Home
When sharing and discussing our definition of home Lucas had a more refined understanding of the definition of home in a sense going beyond the definition of home revolving around the ideas of the individual obligation, desires and responsibility.
Discussing and identifying our understanding of home over a period of time (1976-2004) between the two text given, we both agreed that the definition of home where the idea of a physical space was more apparent where as the text from Mallett did not limit its definition but explored different factors that could be included in the understanding of home such memories or the journey.
Concept of Home
The concept of home is a place of familiarity, nostalgia, comfort & ownership. It is a place where you can retreat and return to at the end of the day reinforcing ones personal identity. The concept is not limited to a physical space where you live but can be created through memories & experiences.
Prescribed Reading - Concept of Home
Concept 1
"i feel comfortable and secure. i am at home. sleep comes quickly."
Statement 1
A familiar space you can return to where you are physically, mentally and emotionally comfortable. Venturing away from home you temporarily create different comforts for situations created from the journey. For example someone who is very quiet person but becomes talkative when at home.
Concept 2
"We make our homes. Not necessarily by constructing them, although some people do that. We build the intimate shell of our lives by the organization and furnishing of the space in which we live. How we function as persons is linked to how we make ourselves at home. We need time to make our dwelling into a home. . . . Our residence is where we live, but our home is how we live. (31)"
Statement 2
Home is not restricted to the definition of a physical object or space. it can be constructed through experiences, memories, and the journey. Examples can be childhood memories of activities played in the backyard or a certain event that occurred in a space of the home.
Concept 3
"Source of personal identity and status and/or a source of personal and family security."
Statement 3
Referring to the physical definition of Home were ownership/claiming of a dwelling for example the address of the home. This also transfers to the idea of family security as a safe place to return to for family members.
Mallett, S. (2004). Understanding home: a critical review of the literature. The Sociological Review, 52(1), p 84.
"i feel comfortable and secure. i am at home. sleep comes quickly."
Statement 1
A familiar space you can return to where you are physically, mentally and emotionally comfortable. Venturing away from home you temporarily create different comforts for situations created from the journey. For example someone who is very quiet person but becomes talkative when at home.
Concept 2
"We make our homes. Not necessarily by constructing them, although some people do that. We build the intimate shell of our lives by the organization and furnishing of the space in which we live. How we function as persons is linked to how we make ourselves at home. We need time to make our dwelling into a home. . . . Our residence is where we live, but our home is how we live. (31)"
Statement 2
Home is not restricted to the definition of a physical object or space. it can be constructed through experiences, memories, and the journey. Examples can be childhood memories of activities played in the backyard or a certain event that occurred in a space of the home.
Concept 3
"Source of personal identity and status and/or a source of personal and family security."
Statement 3
Referring to the physical definition of Home were ownership/claiming of a dwelling for example the address of the home. This also transfers to the idea of family security as a safe place to return to for family members.
Mallett, S. (2004). Understanding home: a critical review of the literature. The Sociological Review, 52(1), p 84.
Thursday, 6 March 2014
2011 Tohoku Earthquake & Tsunami
The location which i have chosen for project 1 is Japan, Tohoku. In 2011 on the east of japan a earthquake with a magnitude of 9.0, it was the most powerful earthquake to hit Japan. It is now referred to now in Japan as the Great East Japan Earthquake.
The 9.0 earthquake created powerful tsunami waves which was estimated to reach up to 40.5m high. The wave traveled 10km inland destroying and washing away buildings, vehicles and people.
"http://www.eqclearinghouse.org/2011-03-11-sendai/files/2011/03/img-mg-japan-quake_124322735117.jpg"
Ships that were pulled inland from the sea.
"http://wallpapers5.com/images/wallpapers/50443304/Landscape/Japan-Tsunami-Earthquake-345.jpg"
Aerial View of the disaster showing the power of the waves pushing buildings with ease.
"https://www.youtube.com/watch?v=w3AdFjklR50"
Comparative Precedent Study - Shipping Container Architecture
Japan currently has a population of 127.6 million to cater for the growing population Japan has developed and adjusted to extremely small living conditions the capsule hotels are a great example of how small and enclosing living conditions can be habitable.
Yasutaka Yoshimura Architects - Ex Container Project
Using 2 shipping containers, Yasutaka Yoshimiru Architects have designed a high quality low costing Housing for disaster relief in response to the 2011 earthquake. Photos shown that the housing looks spacious that could temporarily accommodate a small family.
"http://www.designboom.com/wp-content/uploads/2013/04/P1090135.jpg" - Interior photo of housing.
"http://www.designboom.com/wp-content/uploads/2013/04/P1090180.jpg" - Transportation of container housing.
"http://www.designboom.com/wp-content/uploads/2013/04/exc_simple_120.jpg" - Plans of the container housing with furniture shown to showcase the space of the housing.
"http://www.designboom.com/architecture/yasutaka-yoshimura-architects-ex-container/?utm_source=feedly" - Exterior photo of combined containers.
Sigeru Ban Architects
Using 2 shipping containers as well, Sigeru Ban container housing looks less spacious than Yasutaka Yoshimura design. The main difference that stands out between both designs is a separating wall that divides the Sigeru Ban design. Yasutaka saves cost by using a curtain to divide the habitable areas from non-habitable.
The effect of not having this separating wall gives the impression of greater size when it is open space.
"http://www.designboom.com/architecture/shigeru-ban-earthquake-relief-shipping-container-houses/" - exterior photo of housing
Tsunami
Tsunami Studio Group Word Doc
https://docs.google.com/document/d/1V3o3423q0lX0gP5JGyDB8BZ647LgkU0hmW1fjvoOczc/edit
